K-Ryole User Guide

The “K-Ryole User guide” is a general description of the trailer : You will find explanations and videos that describe important features about the trailer.

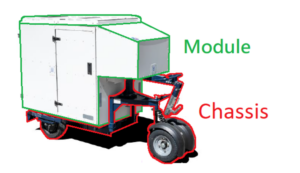

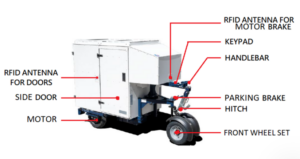

In this section, we describe many parts of the K-Ryole. This section is the reference when this document mentions them.

Each trailer is labeled with a number. it is used to identify the trailer.

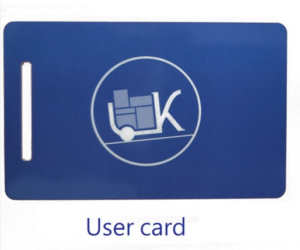

A K-Ryole trailer is always delivered with 2 identical RFID cards. They are used to activate or deactivate the main parking brake.
It is also used to lock or unlock the K-Ryole doors.

While in operation only one key card will be available per trailer. The second key will be safely stored and be used only for rescues purposes  (locked door issues, lost 1st key or other).

Caution to the trainee:

  Always keep this card with you while operating a K-Ryole.

  Forgetting the key inside the trailer’s module is a mistake. If this situation occurs, you will be immobilized because you won’t be able to operate the trailer.

The battery is located at the bottom rear. You will find 2 levers that hold the battery casing closed. One lever can move freely, the second lever is a code lock. It is recommended to start your shift with a fully charged battery.

/!\ IMPORTANT MENTION /!\

THE PASSWORD CODE FOR ALL TRAILER IS 0-0-0-0 (FOUR ZERO).

Swapping battery procedure:

1. PULL THE HAND BRAKE LEVER.
2. DIAL THE PASSWORD CODE ON THE CODE LOCK LEVER.
3. OPEN THE BATTERY CASING.
4. REMOVE THE EMPTY BATTERY
5. INSERT A CHARGED BATTERY. PAY ATTENTION TO THE WAY THE BATTERY IS INSERTED: THE SCREEN DISPLAY MUST BE FACING YOU AND THE ARROW STICKER MUST AIM AT THE TOP.
6. CLOSE THE CASING PULLING ALL LEVERS.
7. ERASE THE DIALED PASSWORD CODE.

There are 2 RFID antennas placed on the K-Ryole’s casing, they detect the RFID cards bonded to it.

The 1st antenna is located at the front. It triggers the main parking brake: showing a RFID card in front of the antenna will engage or remove the main parking brake.

The 2nd antenna is located on the right side. It triggers the doors locking and opening.

K-Ryole powering ON procedure::

1. MAKE SURE A BATTERY IS INSERTED.

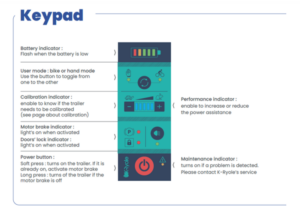

2. PRESS THE RED BUTTON LOCATED ON THE KEYPAD UNTIL BLINKING LIGHTS APPEAR ON THE KEYPAD.

The trailer is now powered ON.

K-Ryole powering OFF procedure:

1. PULL THE HAND BRAKE LEVER.

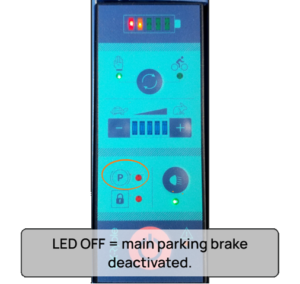

2. REMOVE THE MAIN PARKING BRAKE BY SHOWING THE KEY CARD IN FRONT OF THE FRONTAL ANTENNA.
3. PRESS THE RED BUTTON LOCATED ON THE KEYPAD UNTIL LIGHTS ON THE KEYPAD DISAPPEAR.

The trailer is now powered OFF.

A K-Ryole has 2 brakes. To correctly park the trailer, both brakes must be engaged. Not engaging both parking brakes will not garanty the trailer immobilzation.

K-Ryole parking procedure:

1. DISMOUNT YOUR BICYCLE.

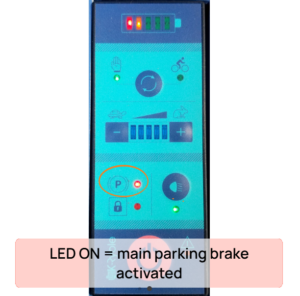

2. SHOW THE KEY CARD IN FRONT OF THE FRONTAL ANTENNA or PRESS THE RED BUTTON LOCATED ON THE KEYPAD.
3. PULL THE HAND BRAKE LEVER.

The doors are unlocked by showing the card in front of the right side RFID antenna.

When ALL DOORS ARE CLOSED and after 5 secondes, the trailer will lock the doors.

 Door opening procedure:

1. DISMOUNT YOU BICYCLE.
2. PROPERLY PARK THE TRAILER FOLLOWING THE K-RYOLE PARKING PROCEDURE DESCRIBED ABOVE.
3. SHOW THE KEY CARD IN FRONT OF THE RIGHT SIDED ANTENNA.

You can now open all K-Ryole doors.

Door closing/locking procedure:

1. CLOSE ALL DOORS.
2. WAIT 5 SECONDS FOR THE DOORS LOCKING.

The doors are now closed and locked.

/!\ IMPORTANT MENTION /!\

LEAVING THE KEY CARD INSIDE THE TRAILER AND CLOSING THE DOORS IS A MISTAKE. If this situation occurs, the K-ryole will be inoperable.

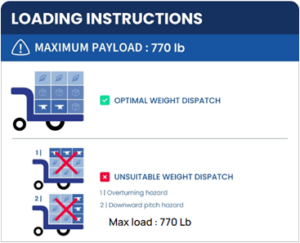

Make sure to load the trailer according to the picture below. It is important that the trailer is bottom heavy.

Heavy loads (soda, water) must be placed on the trailer’s floor. Light loads and packages can be stored on the higher shelfs.

/!\ IMPORTANT MENTION /!\

IMPROPER GOODS LOADING CAN CAUSE TIP OVER.

An input for the trailer is a pulling or a pushing motion applied on the handlebar or the hitch clamp of the K-Ryole. Calibration is a mecanism that ensure the trailer’s good behavior to any given input.

The instantaneous input applied on the trailer is displayed on the keypad through the blue light display. It must me refered to to conclude if the trailer is unproperly calibrated or not.

It is also mandatory to perform a calibration in such circumstances:

• After powering ON the trailer.
• After the bycicle is unclampled from the trailer.
• If the blue light display blinks.

To calibrate the trailer, please refer to the procedure below:

Automatic Calibration procedure:

1. DISCONNECT THE BICYCLE FROM THE TRAILER.

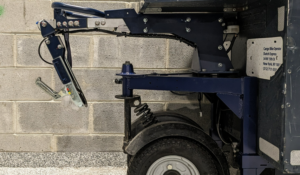

2. LOWER THE HITCH-CLAMP TO ITS RESTING POSITION (refer to the picture below).
3. WAIT UNTIL THE BLUE LIGHT DISPLAY TURNS OFF.

Triggered Calibration procedure:

1. ACTIVATE THE MAIN PARKING BRAKE BY SHOWING THE KEY CARD IN FRONT OF THE FRONTAL RFID ANTENNA OR BY TAPPING THE POWER BUTTON
2. RELEASE THE HAND BRAKE LEVER TO ITS RESTING POSITION.
3. ON THE KEYPAD, PRESS BOTH THE “-” AND “+” BUTTONS. UPON RELEASE, THE BLUE LIGHT DISPLAY WILL BLINK.
4. AT THIS POINT, DON’T TOUCH THE TRAILER.
5. THE K-RYOLE WILL MOVE BY A FOOT. UPON MOVEMENT, THE BLUE LIGHT DISPLAY SHOULD TURN OFF. IF NOT, REPEAT FROM STEP 4.

Before riding with the trailer, it is important that you follow the steps below:

1. POWER THE TRAILER ON
2. CALIBRATE THE TRAILER: PLEASE REFER TO A CALIBRATION PROCEDURE DESCRIBED ABOVE.
3. HOOK THE K-RYOLE TO THE BICYCLE.
4. CHANGE TO AN APPROPRITATE TRAILER MODE (WALKING/RIDING).
5. RELEASE THE HAND BRAKE LEVER TO ITS RESTING POSITION.
6. REMOVE THE MAIN PARKING BRAKE BY SHOWING THE KEY CARD IN FRONT OF THE FRONTAL RFID ANTENNA.
