Model Refrigerator

Catalog >
Electric Trailers >
This is the only temperature-controlled cyclo-logistics vehicle that complies with the cold chain, and is certified and authorised with the Agreement on the Carriage of Perishable Foodstuffs (ATP) to drive on cycle paths.
250Nm
The most powerful solution on the market
150 kg
of payload without any effort
100 cm
Move around the city
100% compatible
It can be used by hand or with any bike
Extendable battery life
Rackable batteries for extended battery life

A refrigerated module
that complies with the cold chain

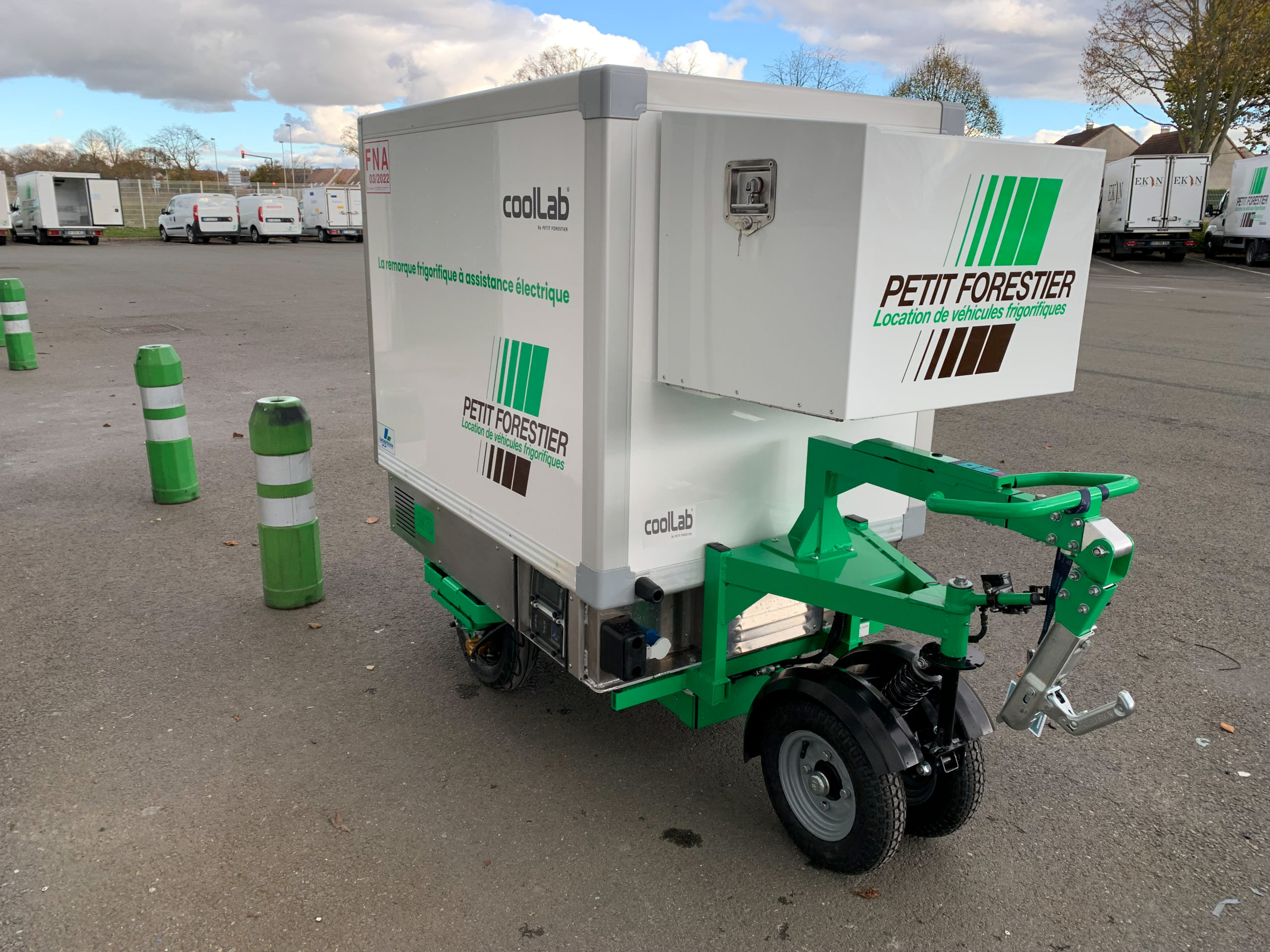

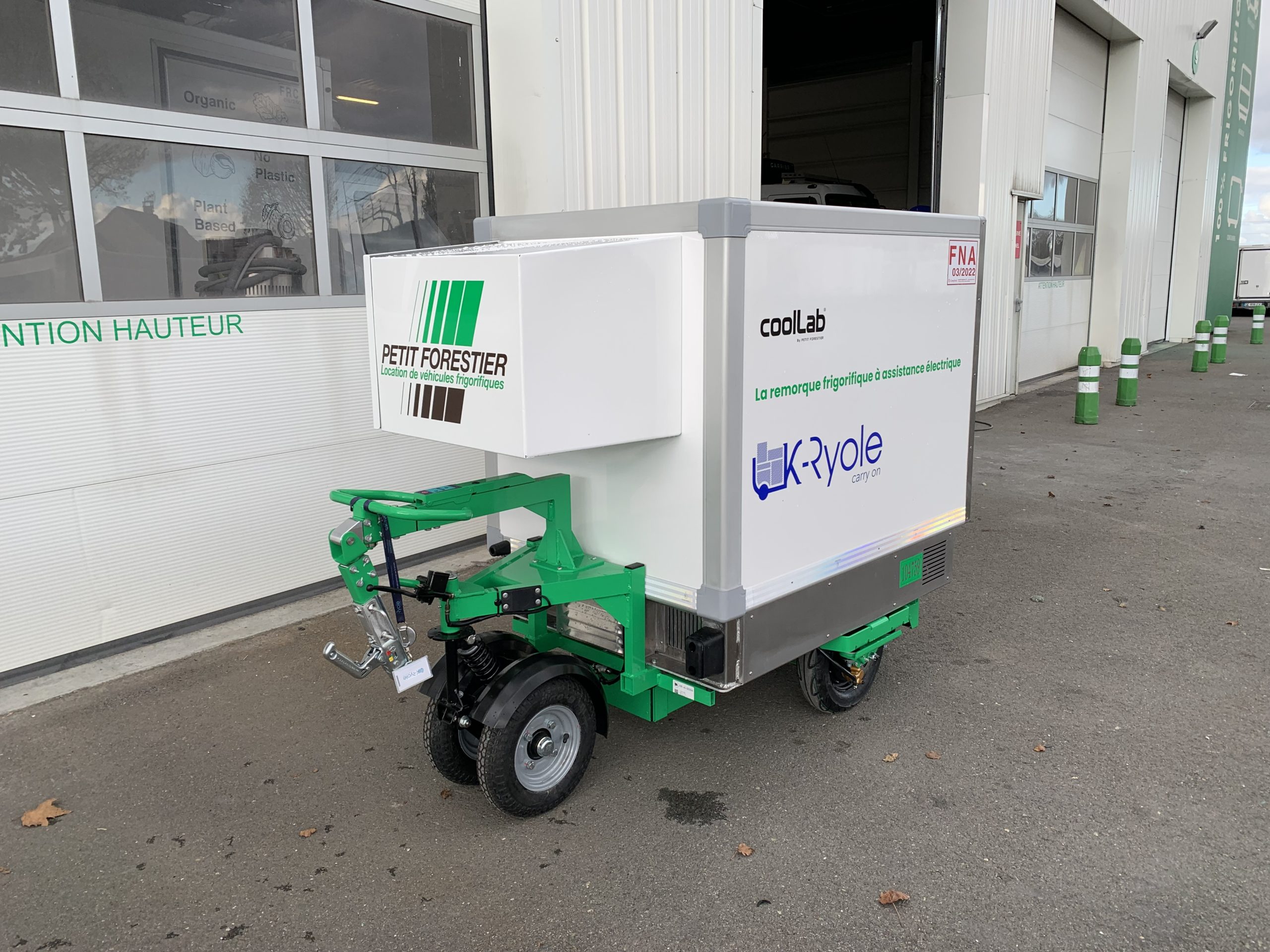

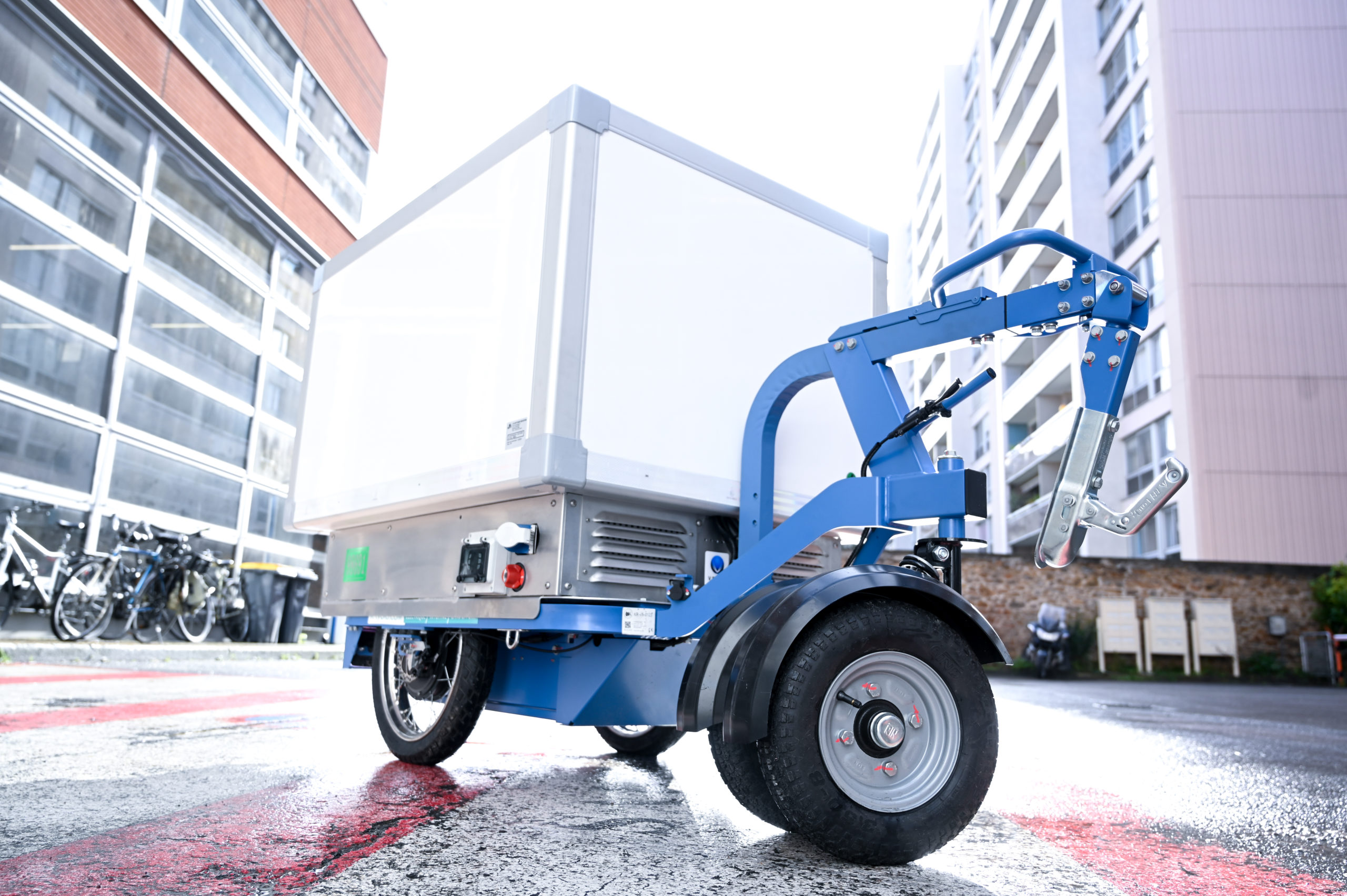

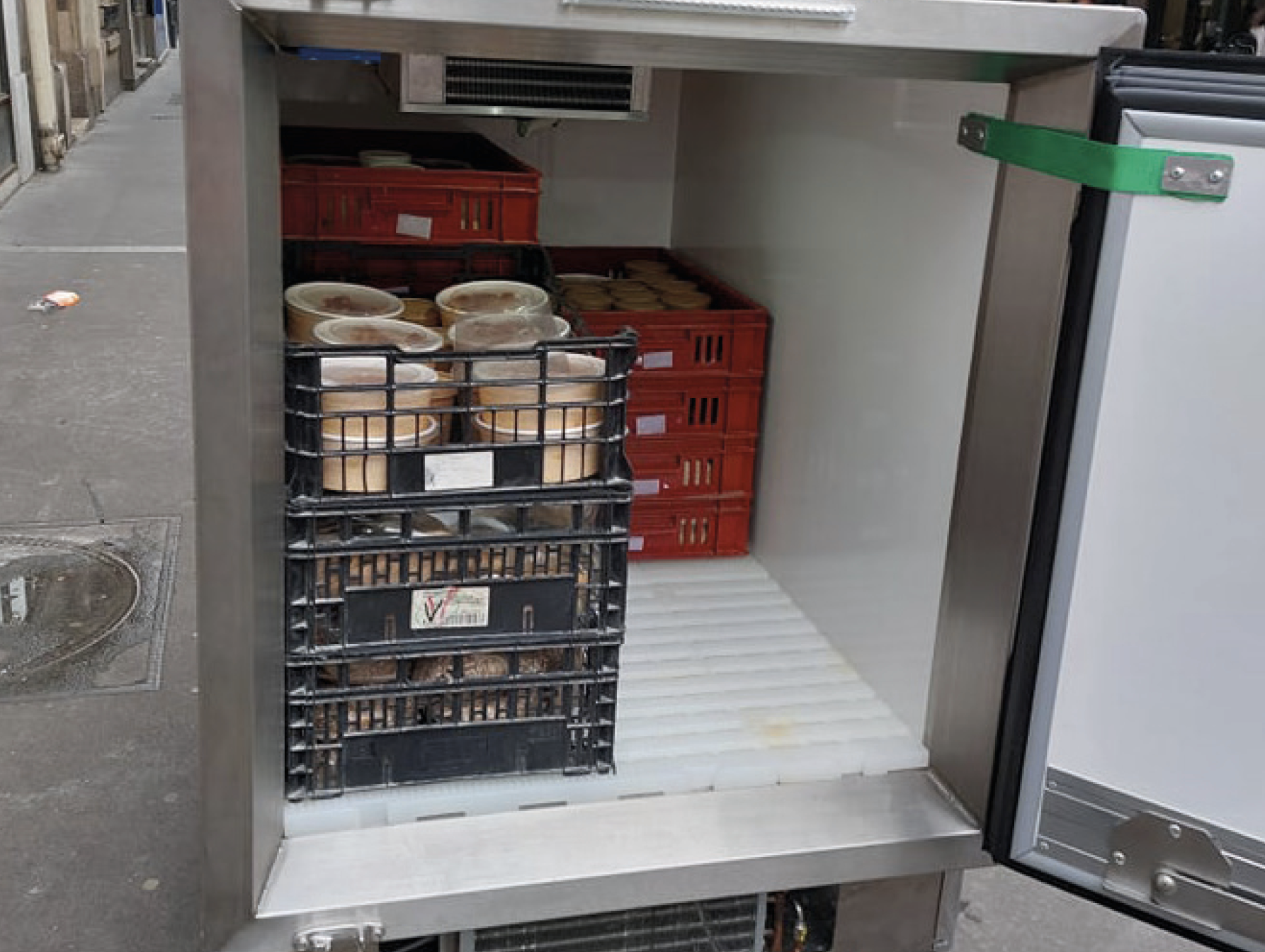

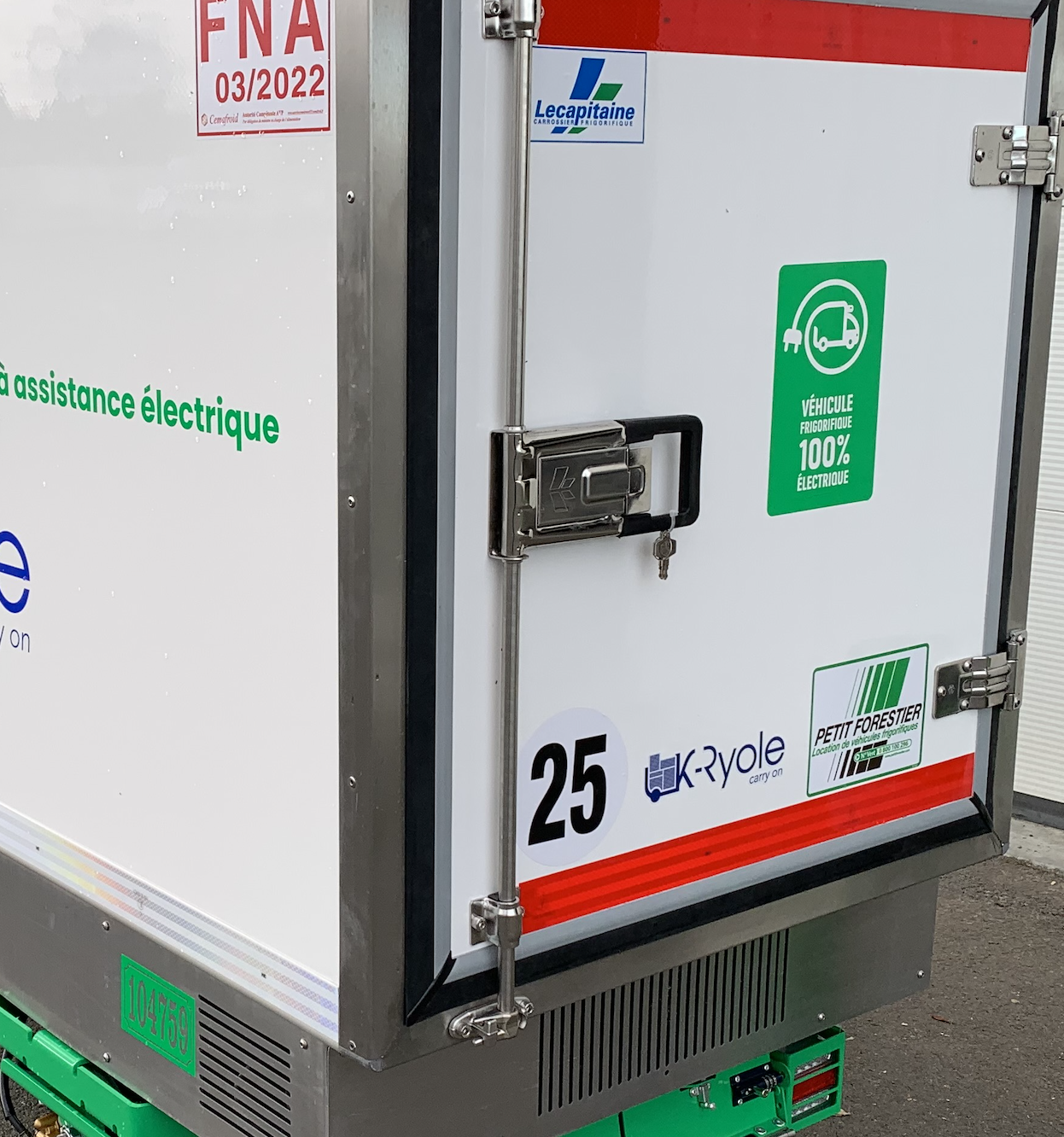

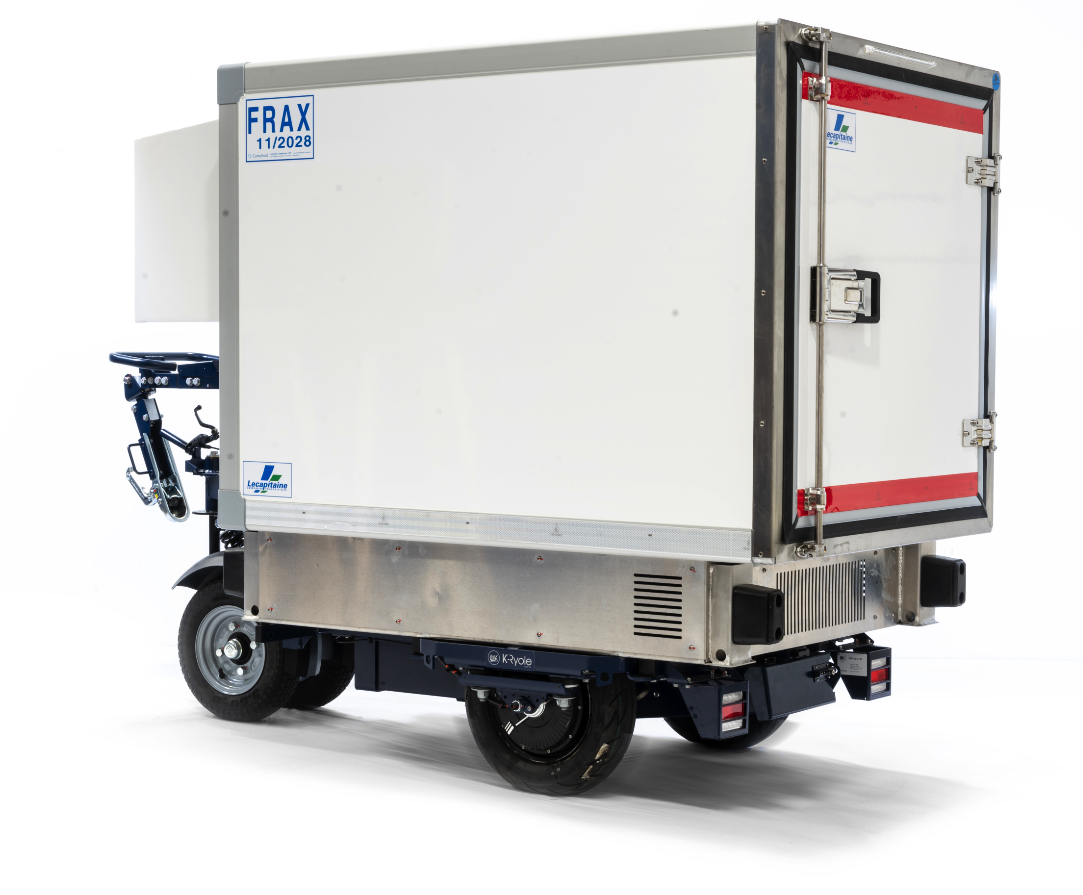

Our refrigerated trailer model was designed in partnership with Lecapitaine (Petit Forestier). It can carry 1025 litres, including 900 litres in a hermetically sealed active cold box. This is a temperature-controlled solution for all activities that require the cold chain to be preserved throughout the transport process. As with all our vehicles, the refrigerated model is authorised to be used on cycle paths and pedestrian routes.

Get a quote
Certified active cooling
Secure vehicle
Robust | For the pros
Large carrying capacity
Customisable

Use cases

Learn more about the customers who are already using refrigerated K-Ryoles. For Catering, home delivery, medicines transportation, etc. Professionals from all sectors are equipping themselves with electric trailers for their activities in urban areas.

Your complementary options

Covering your vehicle with high resistance stickers

Covering

We support the creation of your visual from the elements of your charter.

Graphic Design

Technical specifications

bodywork

Refrigerator


Use

Hand / Bicycle


Warranty

2 years


Compatibility

For all bikes: standard, electric (except those with battery behind the saddle), cargo, two-wheeler, tilting bike


Motors/Power

2 x 1500 W electric DC wheel motors


Technology

Kaptor© Force cancellation technology


Dimensions

222 x 100 x 161 cm


Empty vehicle weight

290 kg


Payload

Up to 150 kg


Battery

Lithium 1,6 kWh rackable


Anti-theft device

Ventilated cold A +12° - 0°C


Speed limit

+/- 30-40 km


Headlights

Position, brakes and reverse lights


Refrigerator unit

7 km/h by hand | 25 km/h by bike


Charging time

4 h on 220 V mains


Certification

ATP Cemafroid FNA 03/2022


Download the datasheet

Refrigerator datasheet


Local and ethic production

All our vehicles are designed, manufactured & assembled in our factory in France.
We favor suppliers from our neighboring regions, thus benefiting from an ethical, qualified expertise and an efficient collaboration.

A maintenance service for pros

Hotline assistance | Repair within 72 hours

Preventive maintenance
Curative maintenance
Breakdown service & support
Preventive maintenance
  • Monitoring program for your machines
  • all upgrades remain compatible
  • No obsolescence : your machines can always be repaired
Curative maintenance
  • Hotline assistance | Repair within 2 hours
  • Provision of a courtesy vehicle within 24 hours
  • Repair of your machine within 72 hours
Breakdown service & support
  • Courtesy vehicles provided in case of accident
  • Direct support line between our technicians and your users

More than 800

Vehicles in use

In France, Belgium, Spain, Portugal, England, Netherlands

2 000 000

kilometers travelled

By our users in 2021
